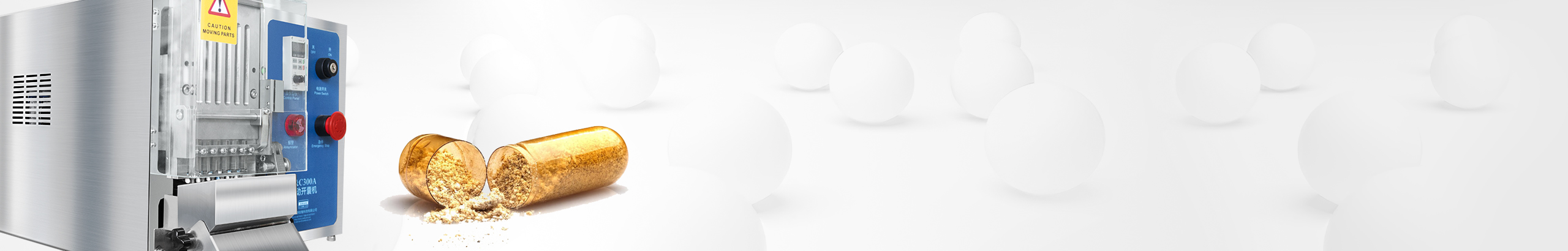

This is the world first machine designed to separate capsules and re-use powder, granules, pellets, or micro-tablets which is built to replace the traditional way of milling, sieving and retrieving powder. Our machine is first of its kind to separate and retrieve round pellets and micro-tablets. It is ergonomically designed; suitable for all capsule sizes with applicable change parts; easy to clean and maintain; user-friendly and meet the cGMP Standard in the industry. It is excellent machine to own by any capsule manufacturing plants or R&D laboratories, where powder are extremely expensive and cGMP is strictly required.





C&C300




Tel: 0086 (010)88795832、88792346

Fax:0086(010)88795831

Email:cbcv@cambcavi.com
Email:cambcavi@126.com

Building G Chuang Ye Yuan, High Science Area Badachu,ShijingshanDistrict, Beijing,China

The capsules enter through the guide from the sorting system are pushed into separating device by the horizontal fork. The blades on the device hold the cap and body of the moving capsules. The capsules moving according to the opening rail formed by the blades; then, it will separate the body and cap of capsule completely.






Model

C&C300

Capsule Model No.

00#  0#  1#  2#  3#  4#

Max Output Capacity (pcs/h)

18000

Power Supply

1PH  220V/110V  50Hz/60Hz  0.2kw

Dimension(mm)

600 x 600 x (1000-1300)

Weight (kg)

40
